Rebuildable and serviceable.
FOX devotes countless hours of research and development to design race-winning suspension that withstands incredible punishment and provides consistent performance you can rely on. Regardless of whether you are flying high over the desert or struggling to stick to a rock face on an off-camber climb, our shocks will give you the damping performance, suspension control and proper spring rate to get the job done.
- Packed Race Winning Technology
- Durable Zinc Plated Seamless Alloy Body
- Hard Chromed 4130 Alloy Steel Shaft
- Fox Racing Oil Developed For Ultimated Performance
- Black Anodized CNC Machined Aluminum Components
Information:
In 1974, Bob Fox invented the first FOX Airshox for professional motocross racing. Air shock design allows for infinite adjustability of spring rate simply by varying nitrogen pressure. Incredibly strong hollow chromoly shafts also deliver reduced weight, making them ideal for competition rock crawlers.
Application Summary:
| Year |
Make/Model |
| 2.0 |
x 5.5 AIR SHOCK-1-1/4in. SHAFT |
| Attributes |
| Body Diameter (in) |
2.0 |
| Body Finish |
Clear Zinc Plated |
| Body Material |
Steel, Steel |
| Bottom Mount |
Eyelet, Eyelet |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Collapsed Length |
13.030 in. |
| Collapsed Length (in.) |
13.030 |
| Color |
Steel |
| Compressed Length (in) |
12.85 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length |
18.530 in. |
| Extended Length (in) |
18.36 |
| Extended Length (in.) |
18.530 in. |
| Eyelet Length (in) |
1.30 |
| FOX CATALOG |
OFFROAD |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Label Name |
2.0 PES, A/S, EMUL, 5.5" |
| Life Cycle Status Code |
Available to Order |
| Mounting |
1/2 x 1-1/4, 1/2 x 1-1/4 |
| NAFTA Preference Criterion Code |
B |
| Reservoir Type |
Emulsion, Emulsion |
| SDR Required Flag |
N |
| Series |
Performance Elite, Factory Race |
| Shaft Diameter |
1.250 in. |
| Shaft Size (in) |
1-1/4 |
| Shock Stroke |
5.500 in. |
| Shock Stroke (in.) |
5.500 |
| Size |
2 in. |
| Top Mount |
Eyelet, Eyelet |
| Travel (in) |
5.51 |
| Type |
Air Shock, Air Shock |
| Valving |

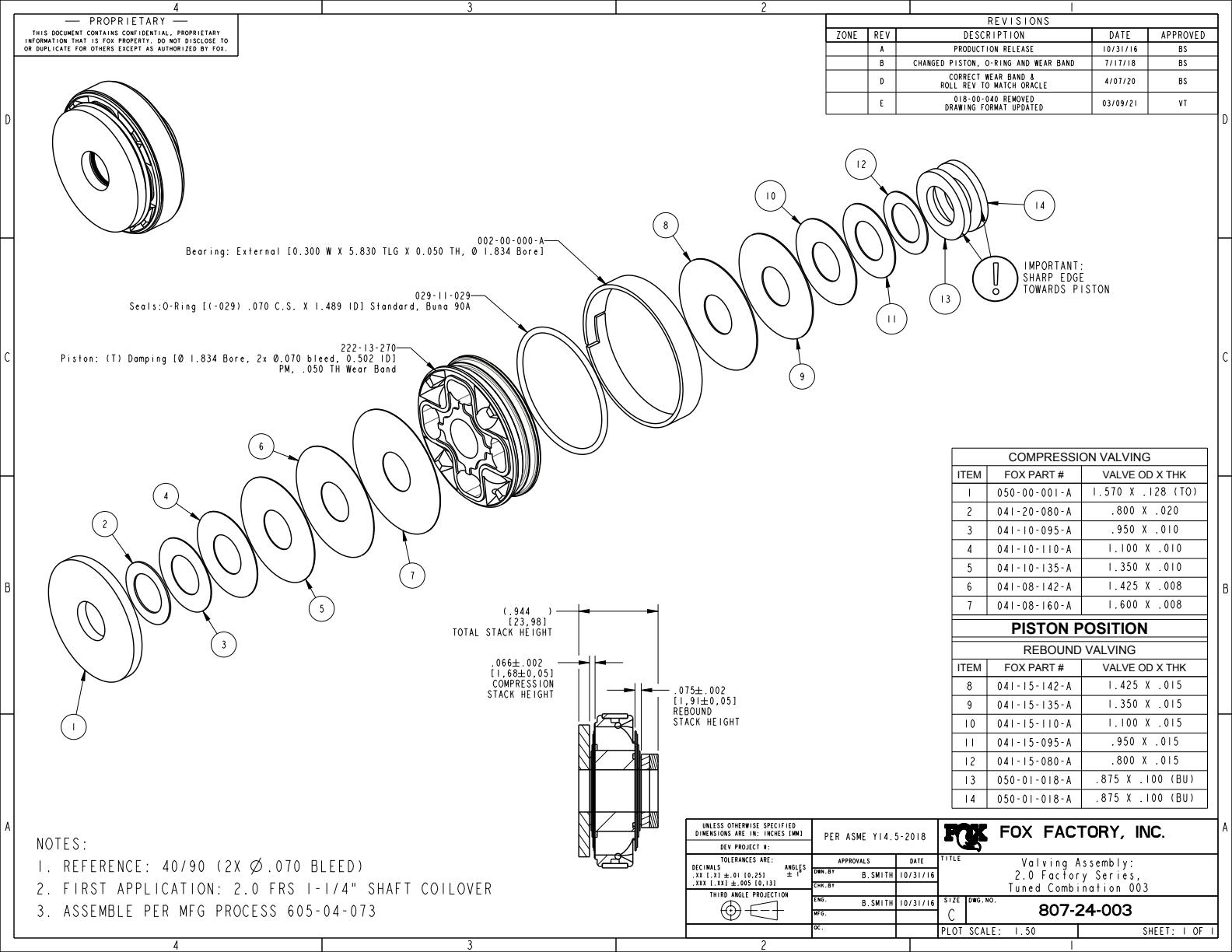

807-24-003, 40/90 |
| Warranty Time |
12 |
| GTIN |
00714686853194 |
